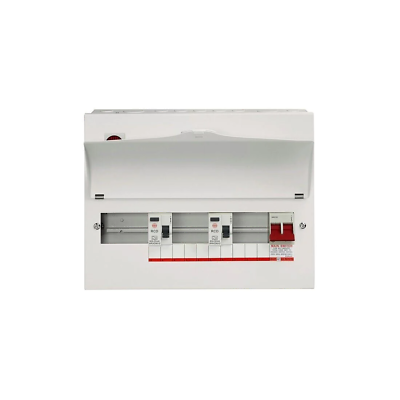

This listing is for 1 x WYLEX NMRS10SSLMHIA 10 Way, High Integrity Consumer Unit (100A Main Switch, 80A, 30mA, Type A RCDs, Flexible Configuration). Please message me for more details. Thanks for looking!
Product details:
• Full metal enclosure
• Flexible busbar assembly
• 10W High integrity
• 2 x 80A 30mA type A RCCBs
Product Specification:
Mounting method - Surface mounted (plaster)
Number of phases - 1
Protection - Miniature- / earth leakage circuit breaker
Total number of groups - 3
Number of poles main switch - 2
Main switch rated current - 100 A
Over voltage protection - No
Material housing - Steel
Degree of protection (IP) - IP2XC
Height - 261 mm
Width - 343 mm
Width in number of modular spacings - 16
Depth - 121 mm
Extension possible - No
With transparent cover - No
Lockable - Yes
Product Standards - BS EN 61439-3
Frequency - 50 Hz CE
Conformity - Yes
WEEE Symbol - Yes
UKCA Conformity - Yes
Amperage - 100 A
Operating Voltage - 230 V
Type of Current - AC Consumer Unit
Type - High integrity
Total final circuit modular ways -10
Busbar type - Flexible
Main switch rating - 100 A
Main switch final circuit modular ways - Flexible
RCD 1 - 80A 30mA type A
RCD 1 final circuit modular ways - Flexible
RCD 2 - 80A 30mA type A
RCD 2 final circuit modular ways - Flexible
Colour - RAL 9010
