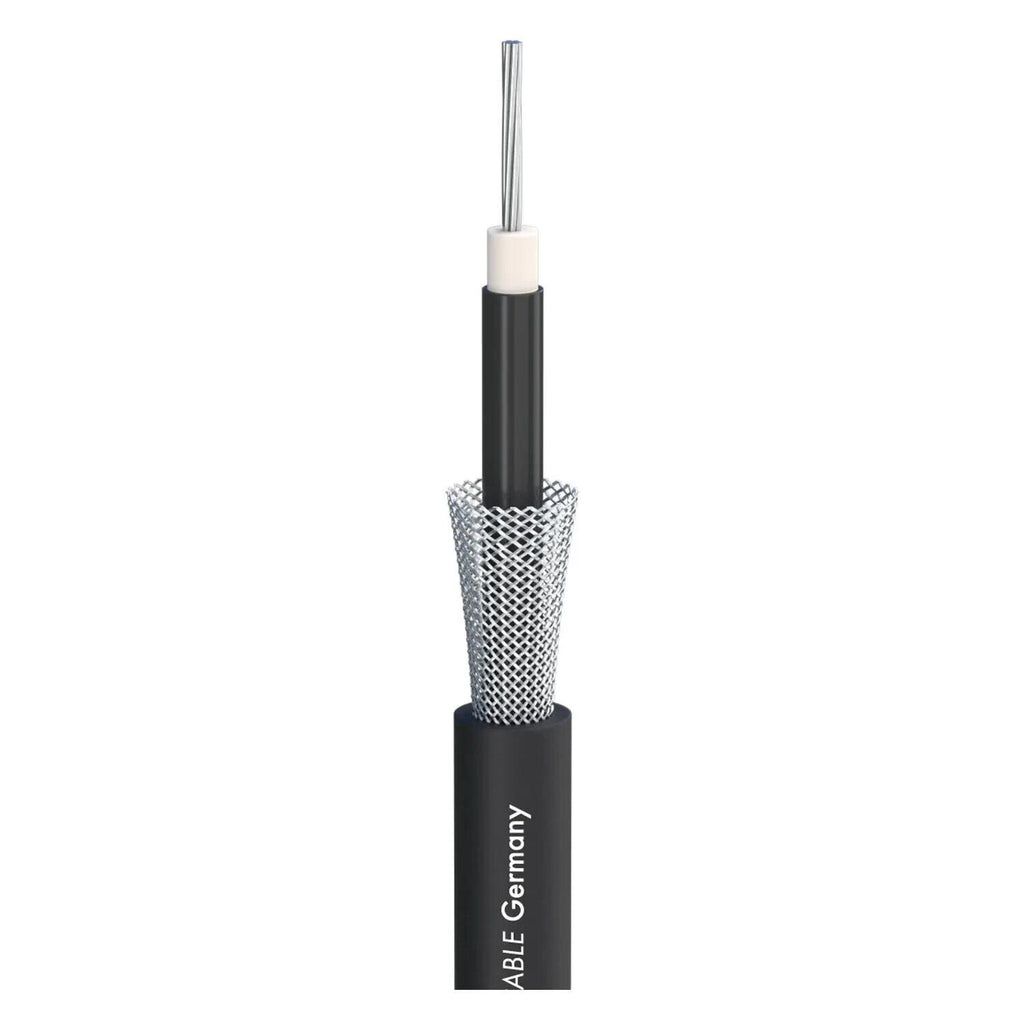

Unbalanced/Mono, Instrument Cable, Black
1 Core and Screen, Copper Wire Core, Copper Wire Screen
This is remarkable cable from Sommer for use with guitars and any unbalanced/ mono devices. The 19 strands of pure copper within its core give this cable a rich tone with a full bodied mid range. It has a large overall diameter of 7mm and within its PVC outer jacket is a copper braid shield and a high spec dielectric, making this one of the quietest unbalanced signal cables that we stock. This cables quality really does stand out.
Construction - LI2Y(LS)CY1x0,50mm2
Jacket, diameter - PVC 7.0 mm
AWG20
Inner conductors - 1 x 0.50 mm2
Copper strand per conductor - 19 x 0.18 mm
Conductor insulation - Foam/skin-PE 3.1 mm
Shielding - copper braiding tin-plated + semiconductor
Shielding factor - 100 %
Temperature range min - 30 °C
Temperature range max - 70 °C
Fire load per m – 0.26 kWh
Weight per 1 m - 66 g
Capac Cond shield per 1 m - 78 pF
Conductor resistance per 1 km - 39
Ohm Insulation resistance per 1 km - > 1 GOhm
