SKU:
614996

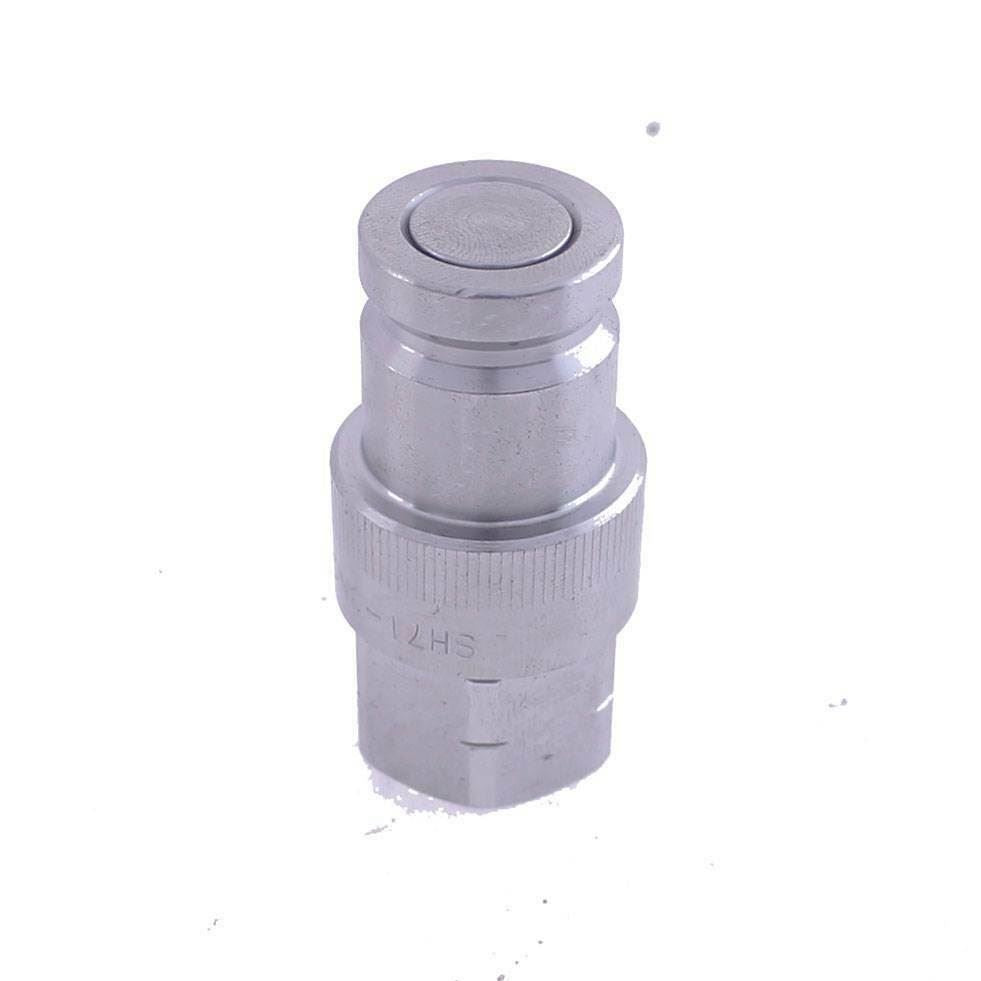

Hydraulic Quick Connect Hose Coupling, Plug, 71 Series, Steel, Coupling Size 3/8 in, Female, Max. Working Pressure @ 70 F 10,000 psi, Max. Flow Rate 45.42 lpm
71 Series hydraulic quick-connect coupling plugs are the male end of coupling sets. Also called nipples, they're inserted into the coupling bodies (female ends) for tough applications, including industrial hydraulic lines and offshore drilling, where fluid spills could create safety or environmental concerns.71 Series hydraulic quick-connect couplings are flush-face, dry break couplings that operate under higher pressures. The large flow chambers and flush-face valve help hold spills and system contamination to a minimum. Push-to-connect allows one-handed use when one half is mounted. The sleeve retracts to disconnect couplings. 71 Series couplings are used in test stands and other hydraulic and chemical applications requiring durability and cleanliness.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
SNAP-TITE 71-3N6-6FV
71 Series hydraulic quick-connect coupling plugs are the male end of coupling sets. Also called nipples, they're inserted into the coupling bodies (female ends) for tough applications, including industrial hydraulic lines and offshore drilling, where fluid spills could create safety or environmental concerns.71 Series hydraulic quick-connect couplings are flush-face, dry break couplings that operate under higher pressures. The large flow chambers and flush-face valve help hold spills and system contamination to a minimum. Push-to-connect allows one-handed use when one half is mounted. The sleeve retracts to disconnect couplings. 71 Series couplings are used in test stands and other hydraulic and chemical applications requiring durability and cleanliness.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
SNAP-TITE 71-3N6-6FV
dewabit
| Part Number | 71-3N6-6FV |
| Manufacturer | Snap Tite |
| Type | Fitting |
| Tag | Fitting |
| Condition | New |
| Package Condition | Bag |
| Unit Quantity | 1 |
| Unit Type | Unit |
| Item Length | |
| Item Width | |
| Item Height | |
| Item Weight | |
| Item Inner Diameter / Bore | |
| Item Outer Diameter | |
| Delivery Time | 3 Days |
| Warranty | 12 Months |
| Item Location | ILMINSTER UK |
| Bin Rack | |
| Notes | |
