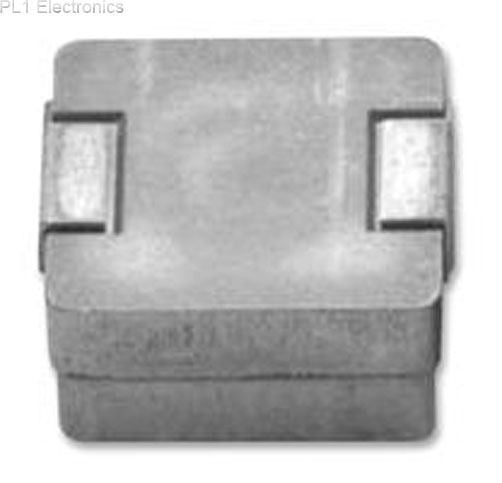

- INDUCTOR, 5.6UH, 13.5A, 20%, SMD
- Product Range: VISHAY - IHLP-5050FD-01 Series
- Inductance: 5.6µH
- Inductance Tolerance: ± 20%
- Inductor Construction: Shielded
- DC Resistance Max: 0.01ohm
- RMS Current (Irms): 13.5A
- Saturation Current (Isat): 32A
- Case Dimensions: 13.2mm x 12.9mm x 6.5mm
- Core Material: Iron Powder
- DC Current Rating: 13.5A
- External Depth: 6.5mm
- External Length / Height: 13.2mm
- External Width: 12.9mm
- Inductor Case Style: 5050FD
- Inductor Type: High Current
- No. of Pins: 2
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
NOTE - IMAGE IS REPRESENTATIVE OF THE RANGE AND SHOULD BE CONSIDERED FOR ILLUSTRATIVE PURPOSES ONLY, PLEASE CHECK THE PRODUCT DETAILS ABOVE FULLY PRIOR TO PURCHASE
Price For: 1
Minimum Order Quantity: 1
Order Multiple: 1
* Any Hazardous goods may be shipped by specialist courier*
NB - OVERSEAS BUYERS PLEASE NOTE - You should only be charged once for postage, try the basket option, if you are charged more than once for postage then please mail me and I will refund you
The postage price quoted for non UK purchases is for items up to 0.5kg in weight. Please contact me prior to purchase for the postage price of heavier items
ALSO HAZARDOUS GOODS WILL NOT BE POSTED OVERSEAS - Please do not buy, or alternatively contact me if the item is or may be hazardous as it will have been listed as available for postage overseas in error
