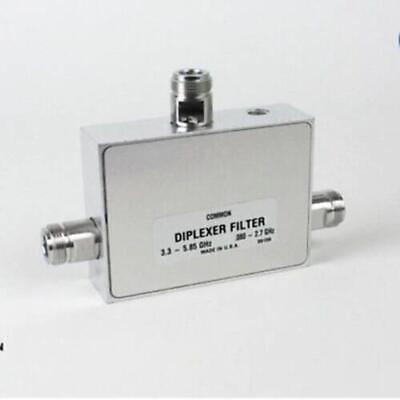

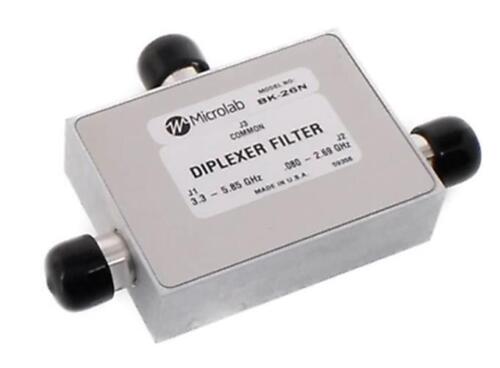

Microlab BK-26N Diplexer.
Features
Combines 5 GHz W-LAN & WiMax to other DAS services
Meets European Rail Standards EN50155: 2001
50 dB Input Isolation
50 W Through Power
Low Passive IM., PIM
Minimal RF Insertion Loss
Rugged, High Reliability Design

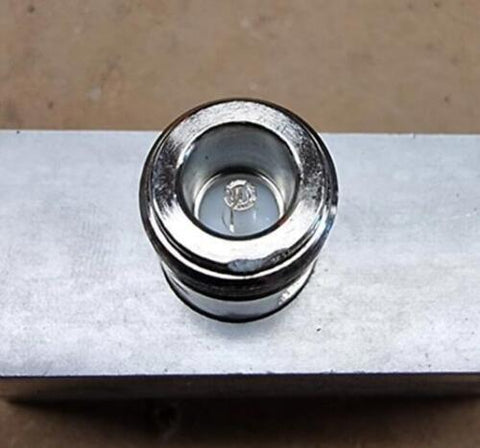

N connectors standard
Product Description
BK-26N 3 GHz Diplexer allows efficient combining of WiMAX and 5 GHz W-LAN designed to 802.11(a) and similar systems, with a coaxial distributed in-building cellular network or DAS. The unit has an extremely broad frequency range with minimal loss for maximum flexibility. This can provide the benefit of the same controlled coverage of the higher frequency services with the DAS.

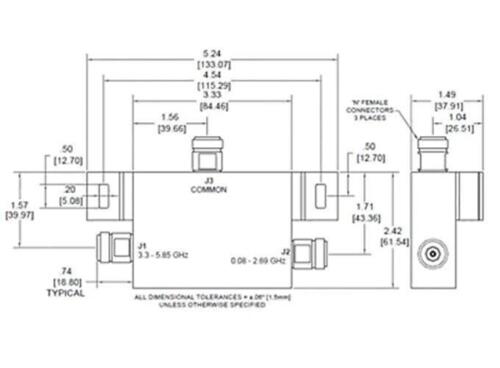

The Diplexer has been designed to be small and lightweight, using passive, proprietary techniques to ensure minimal loss and very high reliability. A simple bracket and tapped holes are provided for simple mounting to a surface or cable tray.
Specifications
Frequency: Passband J1 to J3:3,300 to above 5,850 MHz Passband J2 to J3:below 80 to 2,690 MHzPower:50WReturn Loss:18 dB min.Isolation:>50dB in band except near cross over >47dB 2680-2690 & 3300-3330 MHzPIM:-150 dBc (test with 2 x +43 dBm tones)Connectors:N-TypeIngress Protection:IP64Weight:0.83 lbs (370 g)
|
Brand |
Microlab |
|
Part Number |
BK-26N |
|
Type |
Diplexer 80-2690/3300-5850MHz 50/5WIP64 |
|
Tag |
Module |
|
Item Includes |
As Photo |
|
Item Does Not Include |
As Photo |
|
Condition |
New |
|
Package Condition |
Original Packaging |
|
Unit Quantity |
1 |
|
Unit Type |
Unit |
|
Item Length |
|
|
Item Width |
|
|
Item Height |
|
|
Item Weight |
|
|
Item Inner Diameter Bore |
|
|
Item Outer Diameter |
|
|
Delivery Time |
Dispatched Same Day Standard 2nd Class Express UPS |
|
Binneywood Warranty* |
12 Months |
|
Quantity Available |
Stock: Ebay: Only Shows a Max of 10 |
|
Item Location |
Ilminster U.K. |
|
Ebay Only |
|
|

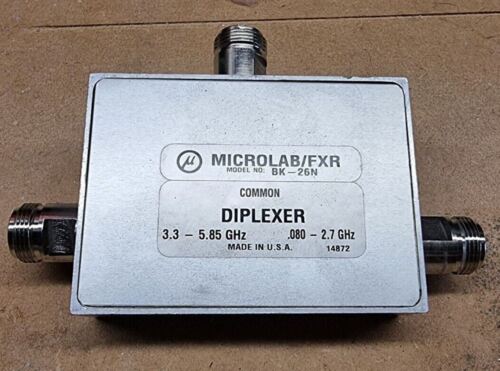

Photo |
Actual Item |
