• High quality manufacture
• Strongest magnetic performance
• Easy to apply, ideal for holding heavier items
• Bright nickel plated with machined face
• 80C max operating temperature

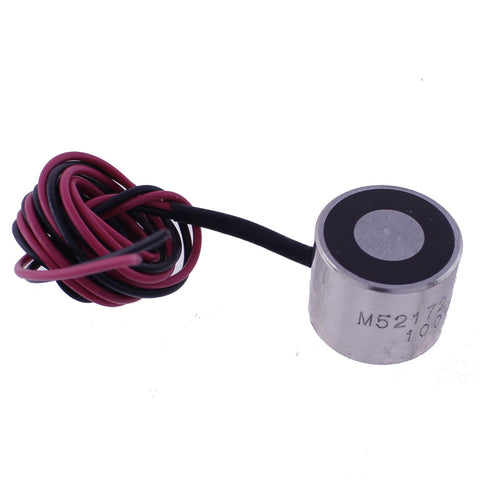

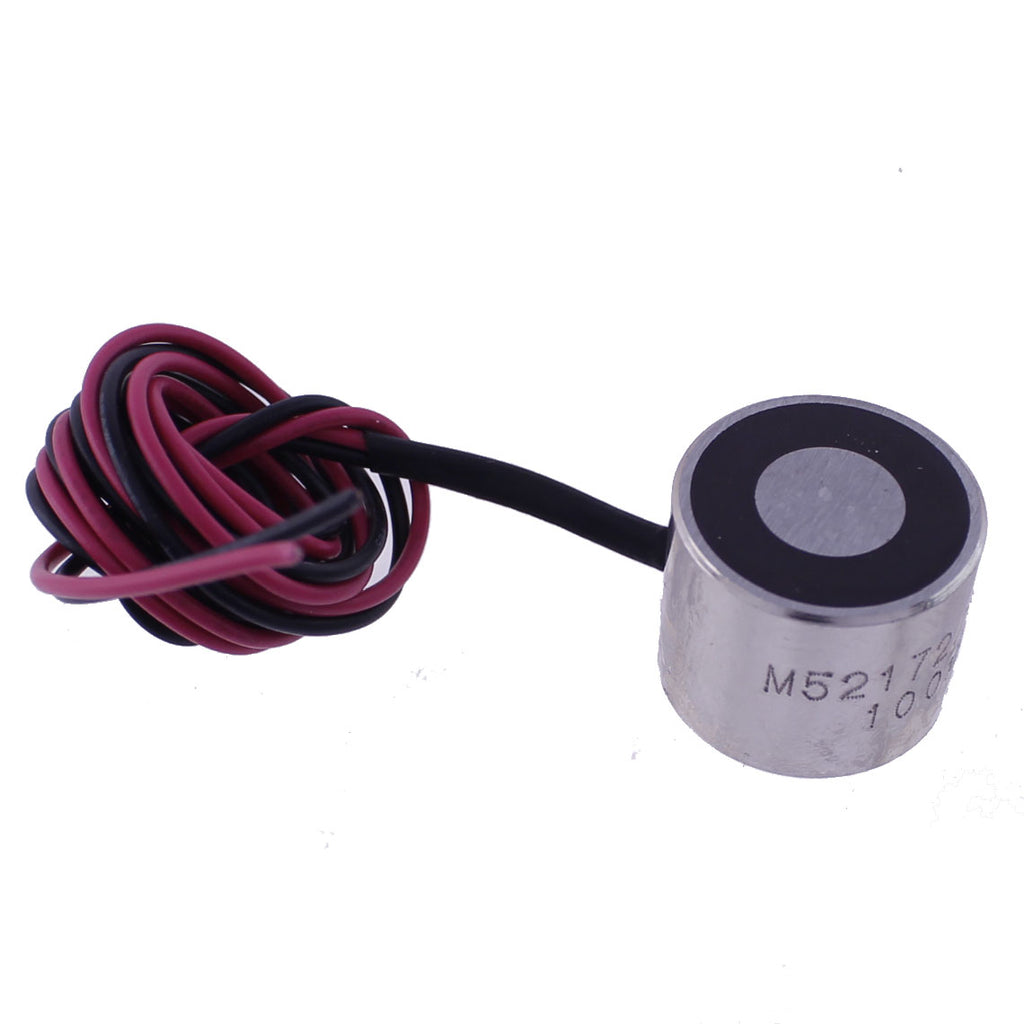

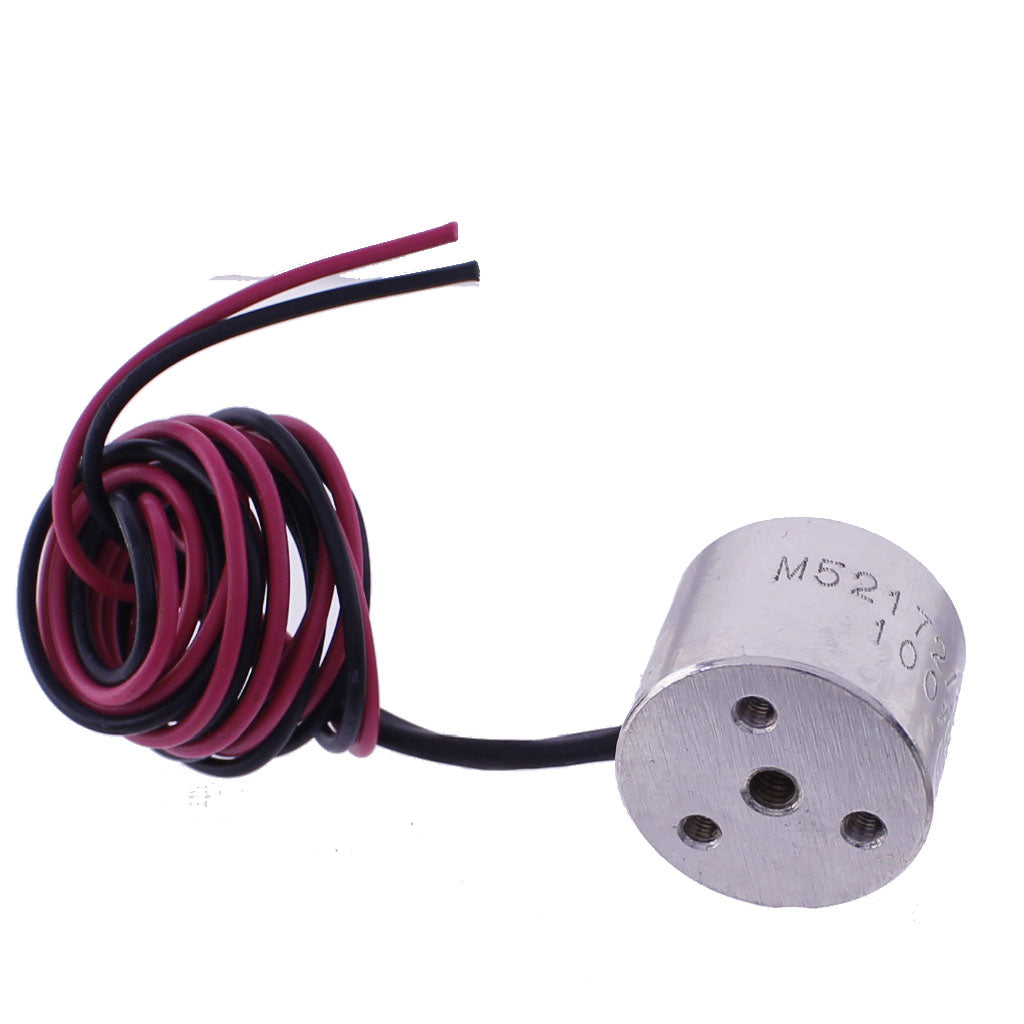

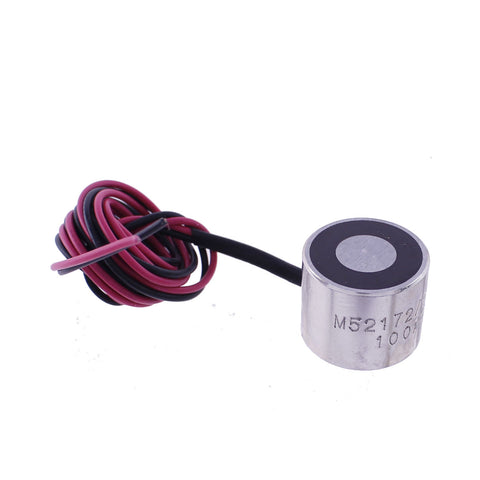

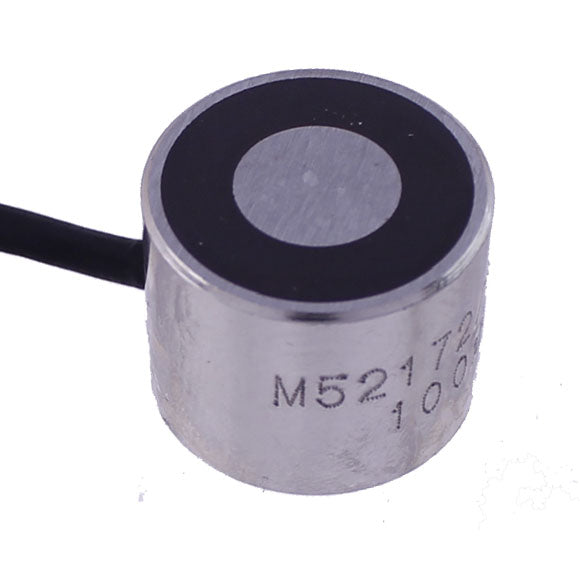

The Energise to Hold Electromagnet is a standard electromagnet concept - a solenoid (wound copper coil) within a high quality high permeability iron assembly for high clamping forces and low magnetic losses. The iron cylinder of the energise to hold electromagnet is of sturdy design with a bright nickel finish passivated with body mounting. Armature plates (keeper plates) exist to suit each energise to hold electromagnet unit. The energise to hold electromagnet has one central and three equi-spaced (on a PCD) tapped holes on the rear face.

The outer shell of the electro magnet is a sturdy bright nickel plated cylinder, passivated with body mounting. Designed for surviving demanding holding and clamping applications. Typical applications include; Door locking mechanisms for access control or security, fire door holding, medical devices , feeder systems for automated packaging machinery, pick and place equipment and power generation.

Key Specifications

Diameter 25mm

Operating Voltage 12VDC

Current- 180mA

Air Gap mm:-

0mm Pull Force (+/- 10%) Newtons - 150

0.09mm Pull Force (+/- 10%) Newtons - 51

0.18mm Pull Force (+/- 10%) Newtons - 22

0.27mm Pull Force (+/- 10%) Newtons - 12

0.36mm Pull Force (+/- 10%) Newtons - 8

0.59mm Pull Force (+/- 10%) Newtons - 4

1.00mm Pull Force (+/- 10%) Newtons - 2

Product Contains

1 x EM-M5217212VDC  Magnetics Energise To Hold Electromagnet 25mm 12VDC
