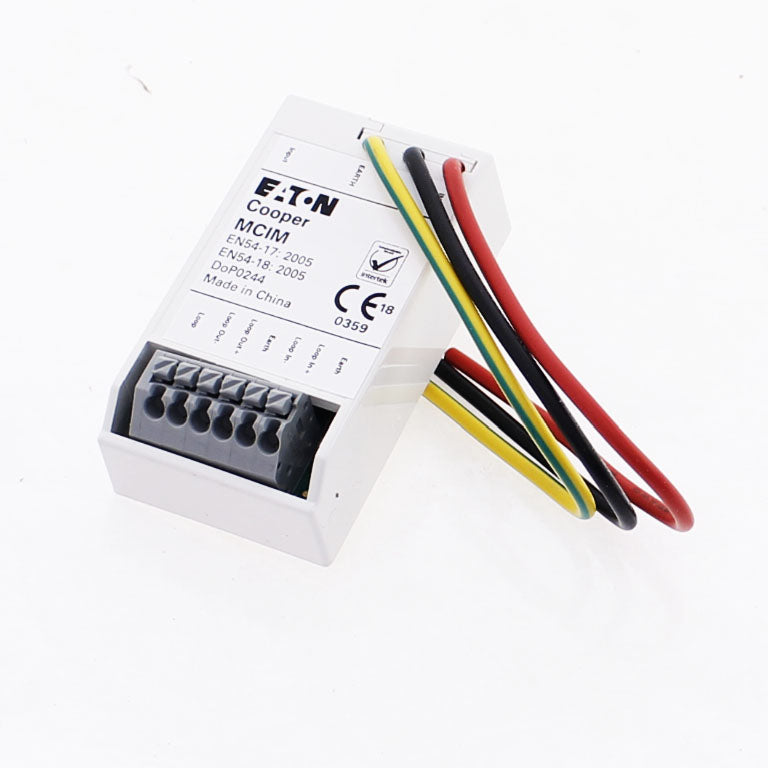

Cooper MCIM Micro Single Channel Input Unit (recognized as a input unit)
An extensive range of micro interfaces are available to support the Cooper range of control panels, providing solutions for most design requirements. The MCIM is a single input, soft addressed micro interface, incorporating integral short circuit isolators. It is extremely compact and therefore ideal for incorporation into other equipment.
The MCIM is fully compatible with the current range of Cooper intelligent addressable fire control panels. It is suitable for monitoring a set of normally open, volt free contacts such as sprinkler system flow switches, auxiliary panel fire/fault signals as well as non-fire input signals such as flow valve open contacts, generator start up, fire door closed etc.
Features:
- Soft addressed
- Integral short circuit isolator
- Single address
- Suitable for monitoring:
- Flow switches
- Non fire inputs
- Auxiliary panels
- Up to 200 units per loop
Benefits:
- Quick and simple to install
- No hard addressing required (Plug and play)
- Compact size
- Programmable by Cooper site installer software as technical input/non fire input
Brand |
EATON |
Part Number |
MCIM |
Type |
OUTPUT MODULE |
Tag |
PART |
Condition |
New |
Package Condition |
Pack as New |
Unit Quantity |
1 |
Unit Type |
Unit |
Length |
mm |
Height |
mm |
Width |
mm |
Weight |
kgs |
Color |
# |
Inner Diameter / Bore |
mm |
Outer Diameter |
mm |
Delivery Time |
3 Days |
Warranty |
12 Months |
Location |
ILMINSTER UK |
# |
# |
# |
# |
